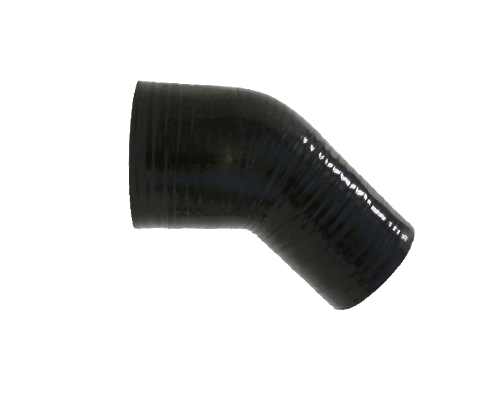

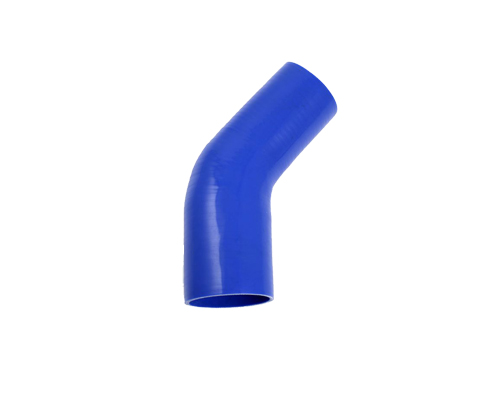

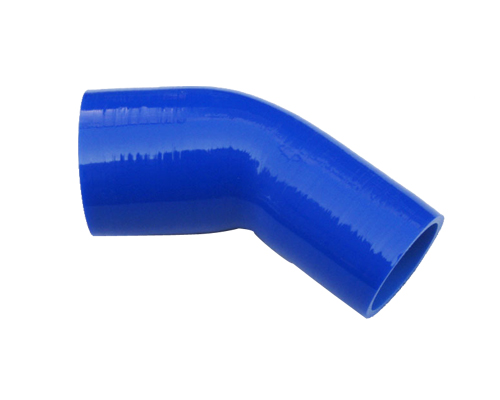

45 Degree Silicone Elbow Reducers

ACE 45 degree silicone elbow reducers are made of reinforced and knitted polyester fabric with high-quality silicone rubber, which has excellent resistance to high or low temperatures, UV, water, ozone, oxygen and corrosion.

ACE 45 degree silicone elbow reducers are used for turbocharger and supercharger, intercooler, and cooling systems in industries such as commercial truck and bus, marine, agricultural and off highway vehicles, high performance racing vehicles, turbo diesel, and general manufacturing industries.

Technical Details:
Reinforcement: 3-, 4-, 5-, 6- ply polyester fabric Working Pressure: 0.3 MPa to 1.2 MPa
Temperature Range: – 60 ºC to + 180 ºC  (-76ºF ~ +356ºF) Colors: Red, blue, yellow, black, green, pink
Quality: Manufactured under the ISO 9001 quality system Remark: Silicone hose is NOT compatible with fuel or oil.
Item NO. Inner Diameter Inner Diameter Leg length Wall Thickness
(mm)  (inch) (mm)  (mm)
MTD1-6-0001 51-38mm 2″>1 1/2″ 100-300 4mm
MTD1-6-0002 57-51mm 2 1/4″>2″ 100-300 4mm
MTD1-6-0003 63-51mm 2 1/2″>2″ 100-300 4mm
MTD1-6-0004 63-57mm 2 1/2″>2 1/4″ 100-300 4mm
MTD1-6-0005 70-51mm 2 3/4″>2″ 100-300 4mm
MTD1-6-0006 70-63mm 2 3/4″>2 1/2″ 100-300 4mm
MTD1-6-0007 76-51mm 3″>2″ 100-300 4mm
MTD1-6-0008 76-63mm 3″>2 1/2″ 100-300 4.5mm
MTD1-6-0009 76-70mm 3″>2 3/4″ 100-300 4.5mm
MTD1-6-0010 80-63mm 3 1/8″>2 1/2″ 100-300 4.5mm
MTD1-6-0011 80-70mm 3 1/8″>2 3/4″ 100-300 4.5mm
MTD1-6-0012 80-76mm 3 1/8″>3″ 100-300 4.5mm
MTD1-6-0013 83-76mm 3 1/4″>3″ 100-300 5mm
MTD1-6-0014 89-76mm 3 1/2″>3″ 100-300 5mm
MTD1-6-0015 102-76mm 4″>3″ 100-300 6mm

The above all are typical products, special products can be made according to customers’ requirements.
