90 Degree Silicone Elbows

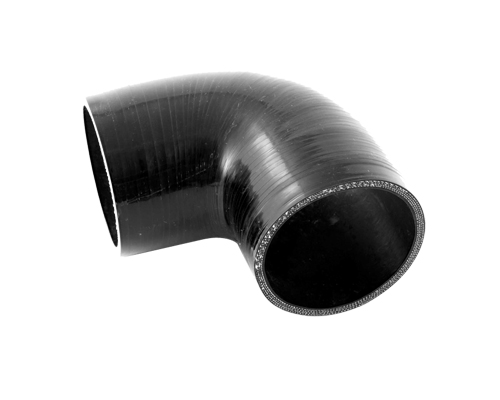

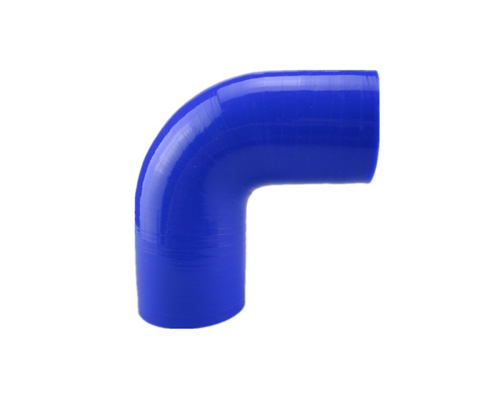

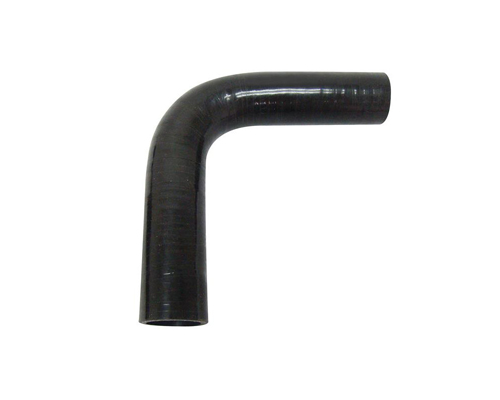

90 Degree Silicone Elbow 90 Degree Silicone Elbow 90 Degree Silicone Elbow

ACE 90 degree silicone elbows are made of reinforced and knitted polyester fabric with high-quality silicone rubber, which has excellent resistance to high or low temperatures, UV, water, ozone, oxygen and corrosion.

ACE 90 degree silicone elbows are used for turbocharger and supercharger, intercooler, and cooling systems in industries such as commercial truck and bus, marine, agricultural and off highway vehicles, high performance racing vehicles, turbo diesel, and general manufacturing industries.

Technical Details:
Reinforcement: 3-, 4-, 5-, 6- ply polyester fabric Working Pressure: 0.3 MPa to 1.2 MPa
Temperature Range: – 60 ºC to + 180 ºC  (-76ºF ~ +356ºF) Colors: Red, blue, yellow, black, green, pink
Quality: Manufactured under the ISO 9001 quality system Remark: Silicone hose is NOT compatible with fuel or oil.
Item NO. Inner Diameter Inner Diameter Length Wall Thickness
(mm)  (inch) (mm)  (mm)
MTD1-5-0001 6mm 1/4″ 100-300 3mm
MTD1-5-0002 8mm 5/16″ 100-300 3mm
MTD1-5-0003 10mm 3/8″ 100-300 3mm
MTD1-5-0004 11mm 7/16″ 100-300 3mm
MTD1-5-0005 13mm 1/2″ 100-300 3mm
MTD1-5-0006 16mm 5/8″ 100-300 3.5mm
MTD1-5-0007 19mm 3/4″ 100-300 3.5mm
MTD1-5-0008 22mm 7/8″ 100-300 3.5mm
MTD1-5-0009 25mm 1″ 100-300 3.5mm
MTD1-5-0010 28mm 1 7/8″ 100-300 4mm
MTD1-5-0011 30mm 1 3/16″ 100-300 4mm
MTD1-5-0012 32mm 1 1/4″ 100-300 4mm
MTD1-5-0013 35mm 1 3/8″ 100-300 4mm
MTD1-5-0014 38mm 1 1/2″ 100-300 4mm
MTD1-5-0015 40mm 1 5/8″ 100-300 4mm
MTD1-5-0016 45mm 1 3/4″ 100-300 4mm
MTD1-5-0017 48mm 1 7/8″ 100-300 4mm
MTD1-5-0018 51mm 2″ 100-300 4mm
MTD1-5-0019 55mm 2 1/8″ 100-300 4mm
MTD1-5-0020 57mm 2 1/4″ 100-300 4mm
MTD1-5-0021 60mm 2 3/8″ 100-300 4mm
MTD1-5-0022 65mm 2 1/2″ 100-300 4mm
MTD1-5-0023 70mm 2 9/16″ 100-300 4mm
MTD1-5-0024 76mm 2 3/4″ 100-300 5mm
MTD1-5-0025 80mm 3″ 100-300 5mm
MTD1-5-0026 85mm 3 1/4″ 100-300 5mm
MTD1-5-0027 89mm 3 1/2″ 100-300 5.5mm
MTD1-5-0028 102mm 4″ 100-300 5.5mm

The above all are typical products, special products can be made according to customers’ requirements.
